NA outdoor indoor EV charging sae j1772 level 2 smart charger wallbox

Short Description:

Joint EV charging station is the most customizable, which can be customized to your message and your brand, creating a positive impression to your employees and customers, and enhancing the overall appearance of your facility. Joint Tech prides itself on its client-focused approach. Our team is always ready to assist with developing a strategy that best suits your needs.

Sample: Support

Customization: Support

Certification: ETL, FCC

Input Voltage: 200-240V

Output Rating: 16A/3.8KW , 32A/7.7KW , 40A/9.6KW , 48A/11.5KW

Charging Interface: SAE J1772 , Type1 Plug

Internal Communication: OCPP 1.6 JSON (OCPP 2.0 compatible)

External Communication: LAN (optional) + 4G (optional) or Wi-Fi (optional)

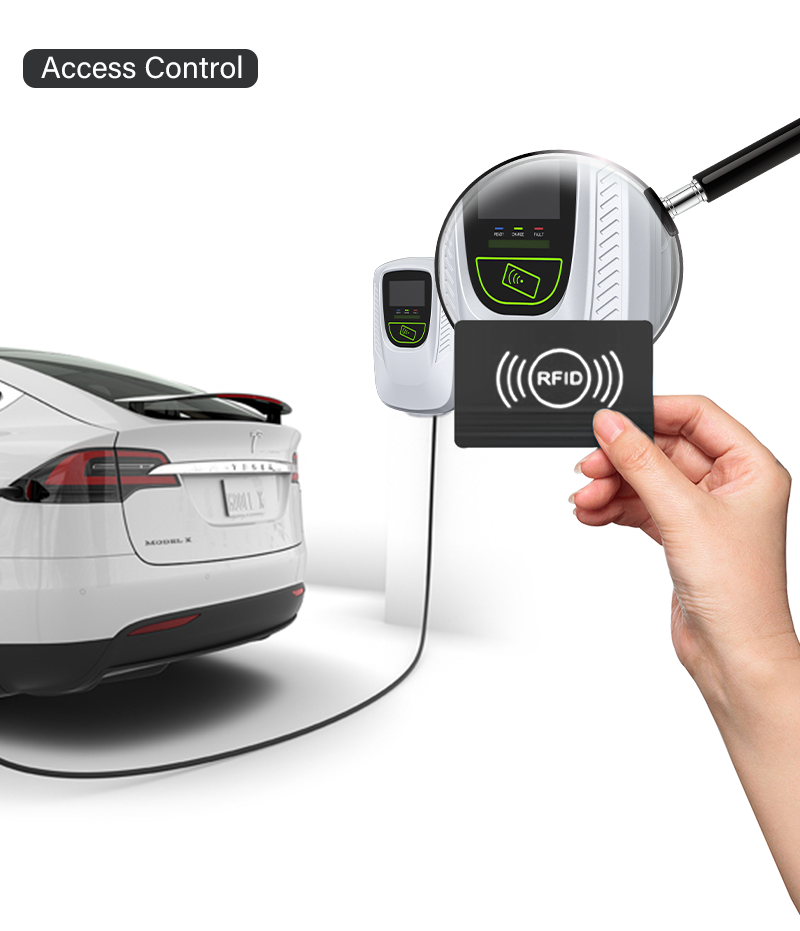

Charging Control: Plug & Play / RFID (ISO14443)

Cable Length: 18ft (25ft charging cable optional)

LCD Display: 4.3'' screen

Send email to us Download as PDF

Product Detail

Product Tags

Introduction

Gaining customer satisfaction is our company's aim forever. We will make great efforts to develop new and top-quality products, meet your special requirements and provide you with pre-sale, on-sale and after-sale services for China Wallbox Type 2 16A 11kw Three Phase European Standard EV Charging Point EV Charger for Smart Charge, For more data, please send email to us. We're searching forwards the opportunity to assistance you.

Product Specification

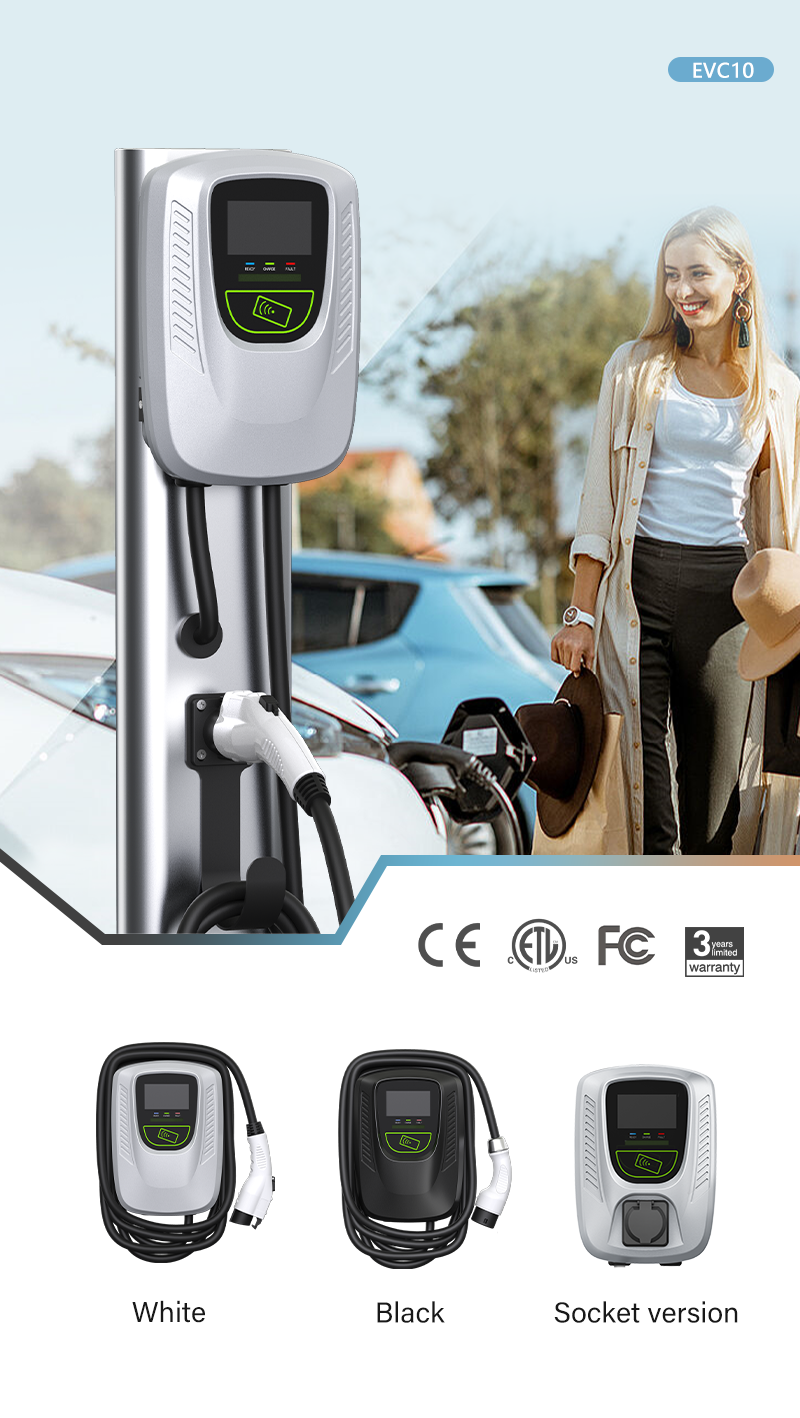

JNT - EVC10
Regional Standard
Regional Standard	NA Standard	EU Standard
Power Specification
Voltage	208–240Vac	230Vac±10% (Single phase)	400Vac±10% (Three phase)
Power / Amperage	3.5kW / 16A	-	11kW / 16A
	7kW / 32A	7kW / 32A	22kW / 32A
	10kW / 40A	-	-
	11.5kW / 48A	-	-
Frequency	50-60Hz	50-60Hz	50-60Hz
Function
User Authentication	RFID (ISO 14443)

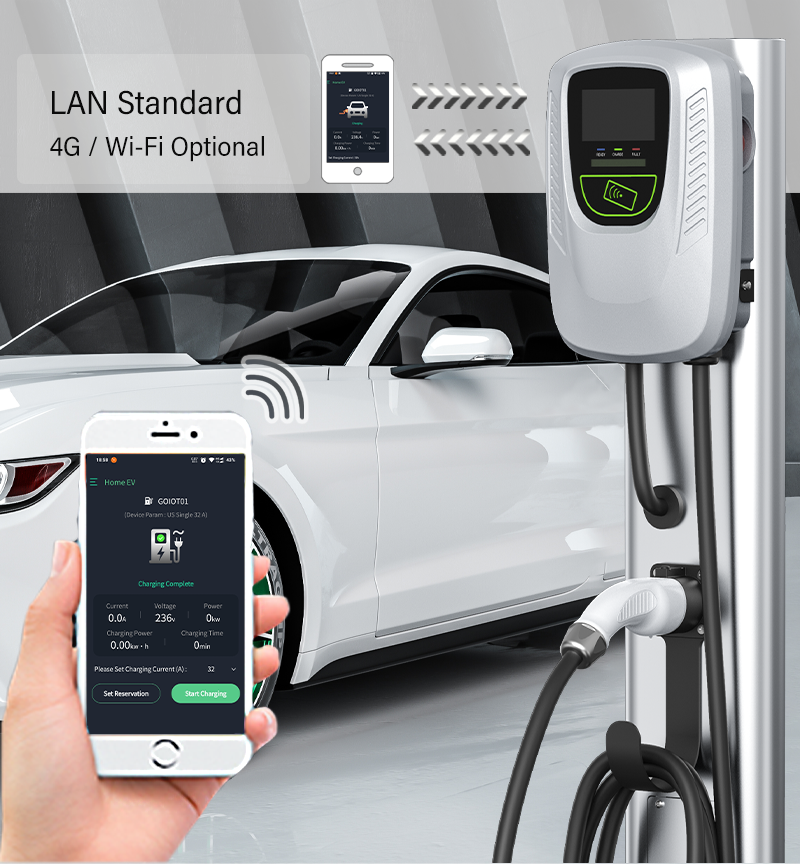

Network	LAN Standard (4G or Wi-Fi Optional with Surcharge)

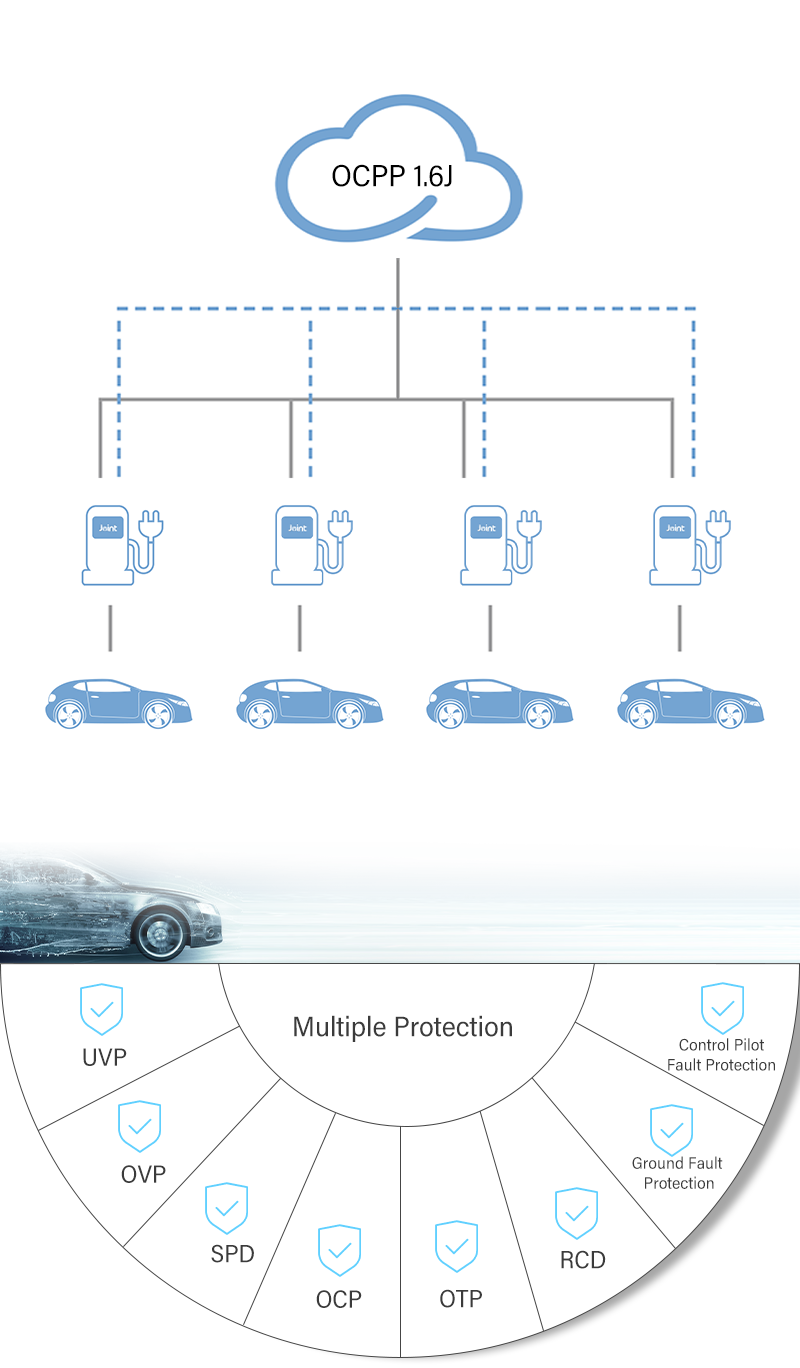

Connectivity	OCPP 1.6 J
Protection & Standard

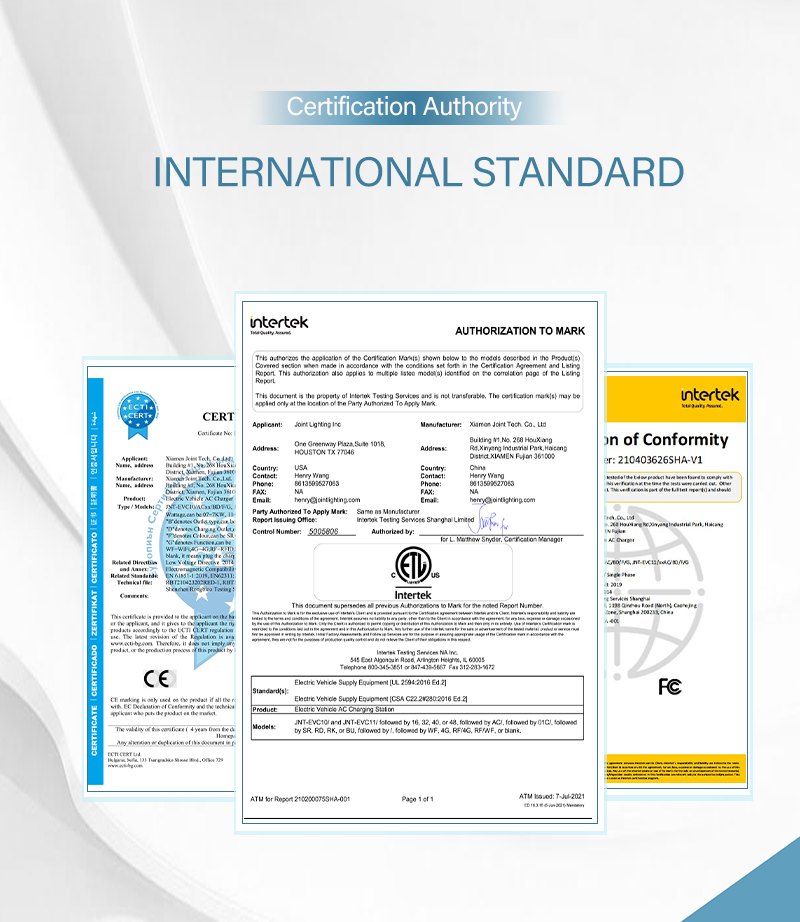

Certificate	ETL & FCC	CE (TUV)

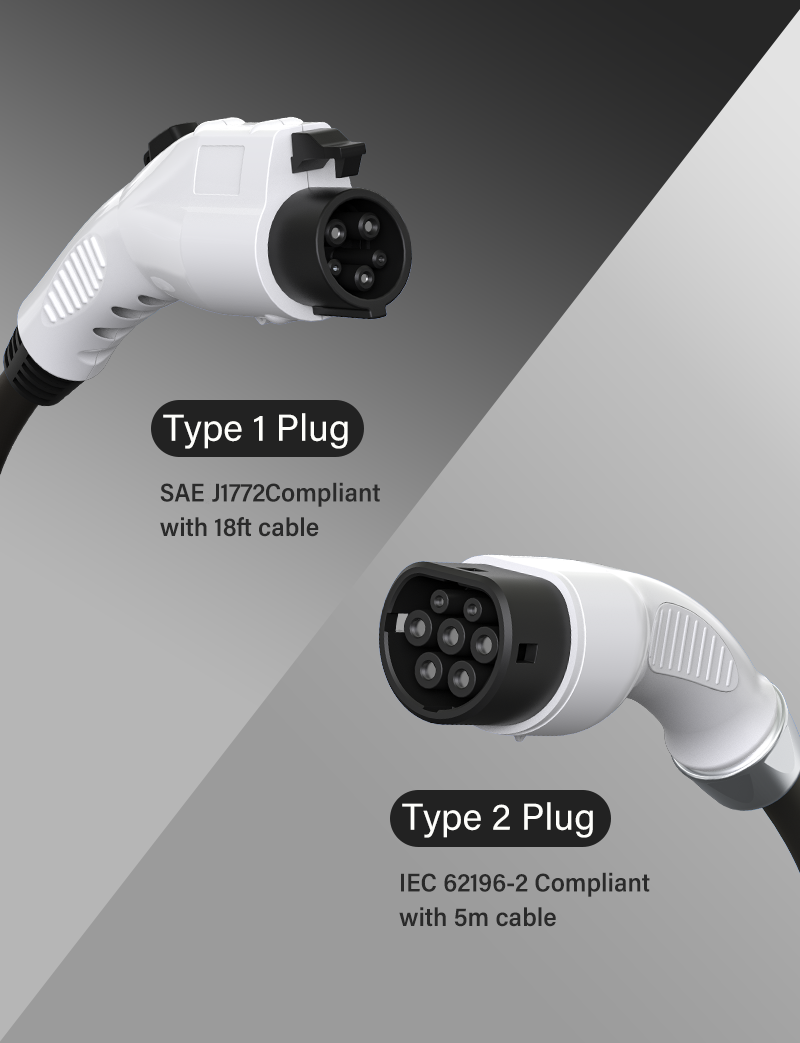

Charging Interface	SAE J1772 , Type 1 Plug	IEC 62196-2 , Type 2 Socket or Plug
Safety Compliance	UL2594 , UL2231-1/-2	IEC 61851-1 , IEC 61851-21-2
RCD	CCID 20	TypeA + DC 6mA
Multiple Protection	UVP , OVP , RCD , SPD , Ground Fault Protection , OCP , OTP , Control Pilot Fault Protection
Environmental
Operating Temperature	-22°F to 122°F	-30°C ~ 50°C

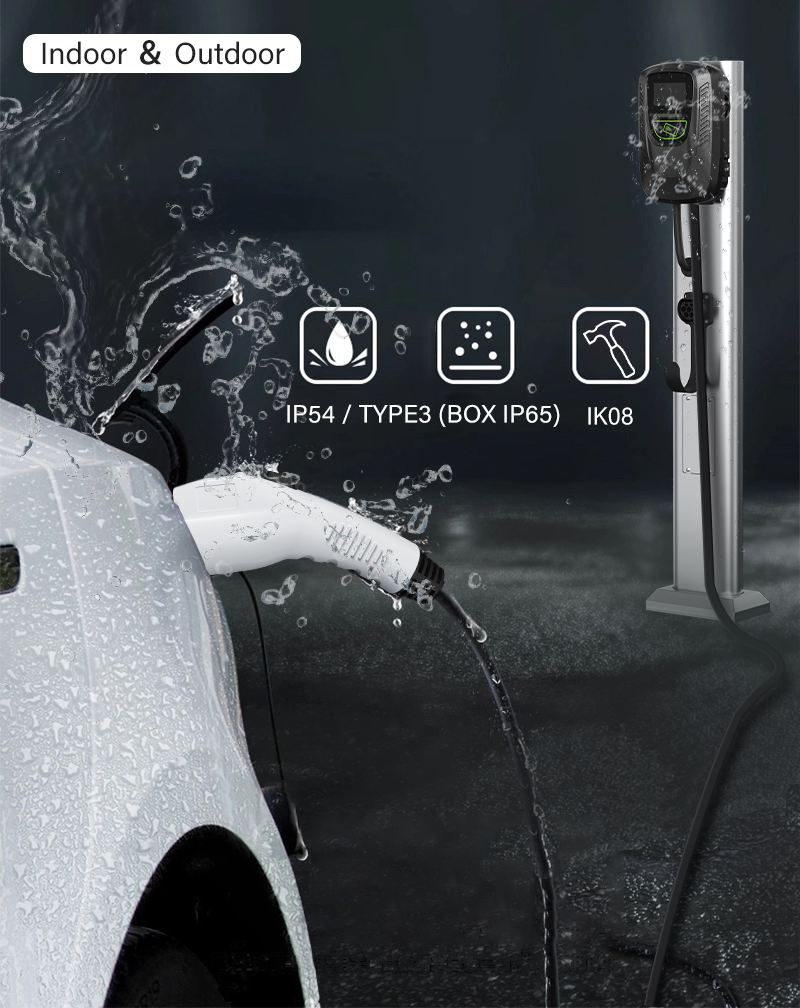

Indoor / Outdoor	IK08, Type 3 enclosure	IK08 & IP54
Relative Humidit	Up to 95% non-condensing
Cable Length	18ft (5m) Standard , 25ft (7m) Optional with Surcharge
