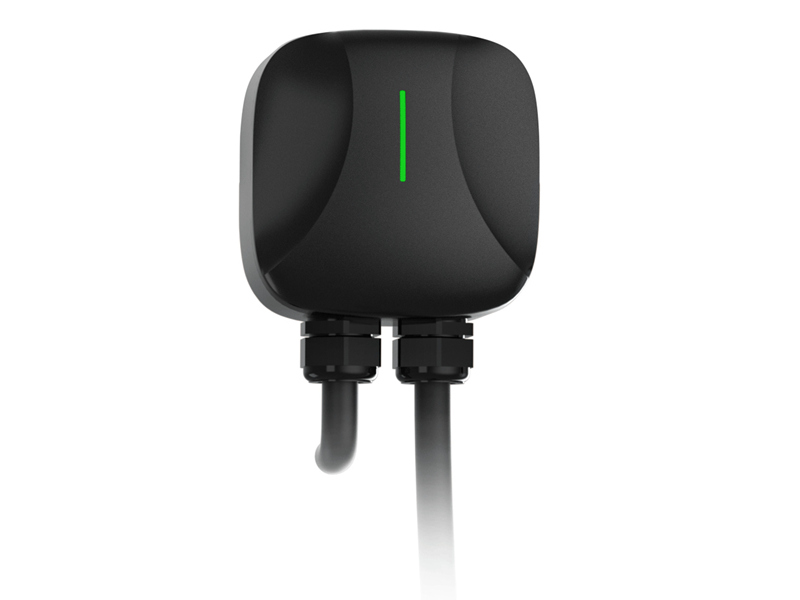

JNT-EVC19-NA type 1 plug with 18ft cable SAE J1772 compliant home AC EV charger

Short Description:

Joint makes charging your EV at home a breeze with reliable up to 48 amp power in an incredibly small size. The compact and sleek design and the 18ft cable fits any garage and is enhanced by multiple functions found on our home app.

Send email to us Download as PDF

Product Detail

Product Tags

Home EV Charger

Compact, Intelligent, Powerful

JNT-EVC19-NA

Small but powerful

Compact

Smaller than a toaster, lighter than a laptop.

Connected

Connect EVC19 to phone via Wi-Fi & Bluetooth, use APP to easily control your charger.

Powerful

Up to 48A / 11.5 kW of charging capacity.

Controllable

Schedule charging sessions that utilize off-peak energy rates, monitor charger status, and more.

Compatible

SEA J1772 compliant, type 1 plug with 18-foot cables.

Durability

IP65 and IK08 protection ratings, allowing for indoors or outdoors.

Technical Datasheet

General Specifications

Model	JNT-EVC19-NA
Charging Mode	Level 2
Cable Length	18-foot (25-foot optional)
Dimensions	7.1″x 7.1″x 3.7″
Weight	9.5lbs, 12.0lbs, 9.5lbs, 13.1lbs
Certificate	ETL , FCC
Waranty	2 Year

Electrical Specifications

Input Voltage	208-240Vac
Frequency	50-60Hz
Amperage	16A	32A	40A	48A
Power Output	3.8kW	7.6kW	9.6kW	11.5kW
RCD	Type A + DC 6mA
Connectivity	Wi-Fi & Bluetooth + APP control
OCPP	OCPP 1.6J optional
Optional Features	Dynamic Power Sharing / MID Meter

Protection & Standard

Charging Interface	SAE J1772 Compliant, Type 1 Plug
Safety Compliance	UL2594, UL2231-1/-2
Multiple Protection	UVP, OVP, RCD (CCID 20), SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection
