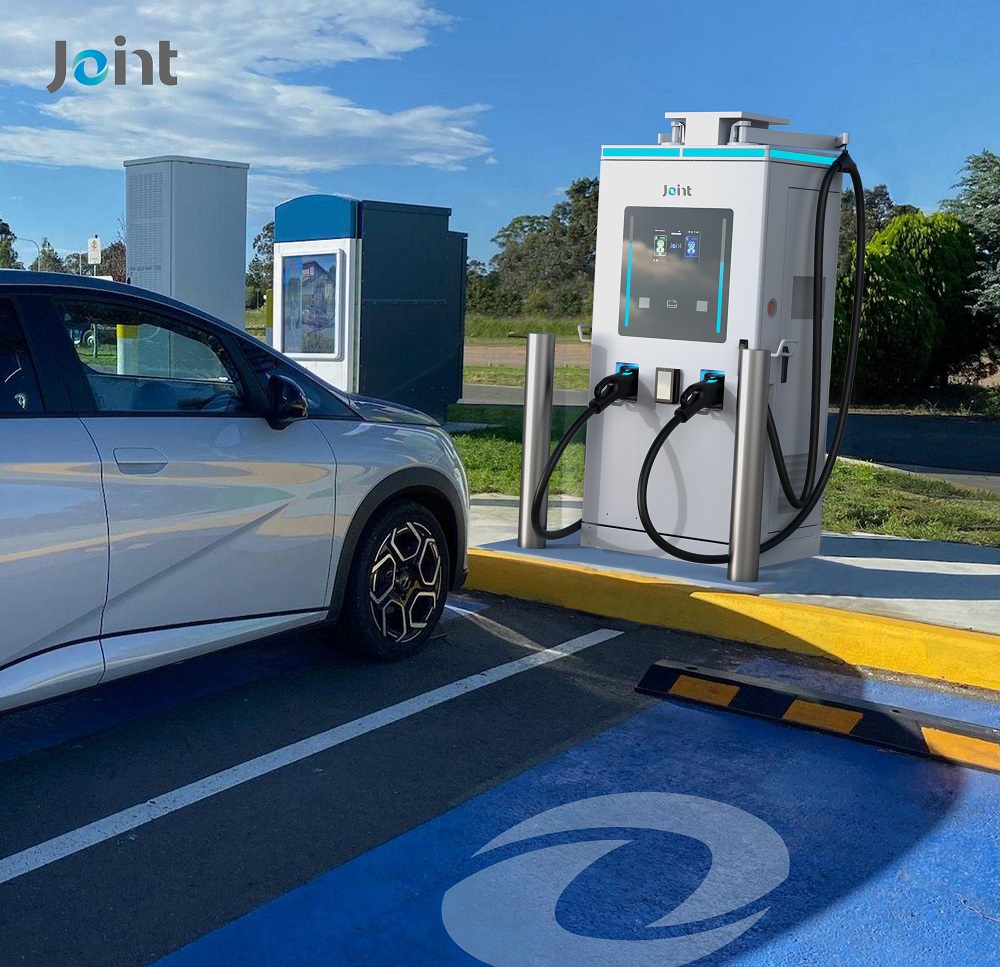

EVD003 180KW Mode 4 DC Dual Port EV Fast Charger with Plug & Charge

EVD003 180KW Mode 4 DC Dual Port EV Fast Charger with Plug & Charge

Short Description:

EVD003 DC EV charger provides 60-160kW of flexible charging with load balancing options. Designed for reliability, it supports CCS2 dual and CCS+GB/T sockets, Plug & Charge (DIN70121, ISO 15118) and OCPP1.6/2.0.1 for seamless management.

Achieve up to 96% charging efficiency with 24/7 remote monitoring and IP55 protection to ensure high performance in any environment. Perfect for European markets looking for compact, efficient and versatile EV charging solutions.


  • Input Voltage Range: 400Vac±15%
  • Maximum Power: 60 kW;80 kW;120 kW;160 kW
  • Charging Outlet: 2*CCS2 cable / 1*CCS2 cable+1*GBT cable
  • Language System: English / French / Spanish
  • Authentification: Plug & Play / RFID / QR code / Credit Card (Optional)
  • Backend support: OCPP1.6 & OCPP2.0.1
  • Product Detail

    Product Tags

    EVD003 DCFC CHARGER
    EVD003 DC Charger - Specification Sheet
    MODEL NO. EVD003/60E EVD003/80E EVD003/120E EVD003/160E
    AC INPUT AC Connection 3-Phase, L1, L2, L3, N, PE
    Input Voltage Range 400Vac±15%
    Input Frequency 50 Hz or 60 Hz
    AC Input Power 92 A, 65 kVA 124 A, 87 kVA 186 A, 130 kVA 248 A, 174 kVA
    Power Factor (Full Load) ≥ 0.99
    DC OUTPUT Maximum Power 60 kW 80 kW 120 kW 160 kW
    Charging Outlet 2*CCS2 cable / 1*CCS2 cable+1*GBT cable
    Cable Maximum Current 200A 250A/300A(Optional)
    Cooling method Air-cool
    Cable Length 4.5M / 7M(Optional)
    DC Output Voltage 200-1000 Vdc ( Constant power from 300-1000Vdc)
    Efficiency (peak) ≥ 96%
    USER INTERFACE User Interface 10" LCD high-contrast touchscreen
    Language System English / French / Spanish
    Authentification Plug & Play / RFID / QR code / Credit Card (Optional)
    Emergency Button Yes
    Internet Connectivity Ethernet, 4G, Wi-Fi
    LIGHT CODES Standby Solid Green
    Charging In Progress Blue Breathing
    Finished / Stopped Charging Solid Blue
    Reservation Charging Solid Yellow
    Device Unavailable Yellow Blinking
    OTA Yellow Breathing
    Fault Solid Red
    ENVIRONMENTA Operating Temperature -25 °C to + 50°C
    Storage Temperature -40 °C to +70 °C
    Humidity < 95%, non-condensing
    Operating Altitude Up to 2000 m
    ACCORDING TO STANDARD Safety IEC 61851-1, IEC 61851-23
    EMC IEC 61851-21-2
    EV Communication IEC 61851-24、 GB/T27930、DIN 70121 & ISO15118-2
    Backend support OCPP1.6 & OCPP2.0.1
    DC connetor IEC 62196-3、GB/T 20234.3
    RFID Authentication ISO 14443 A/B
