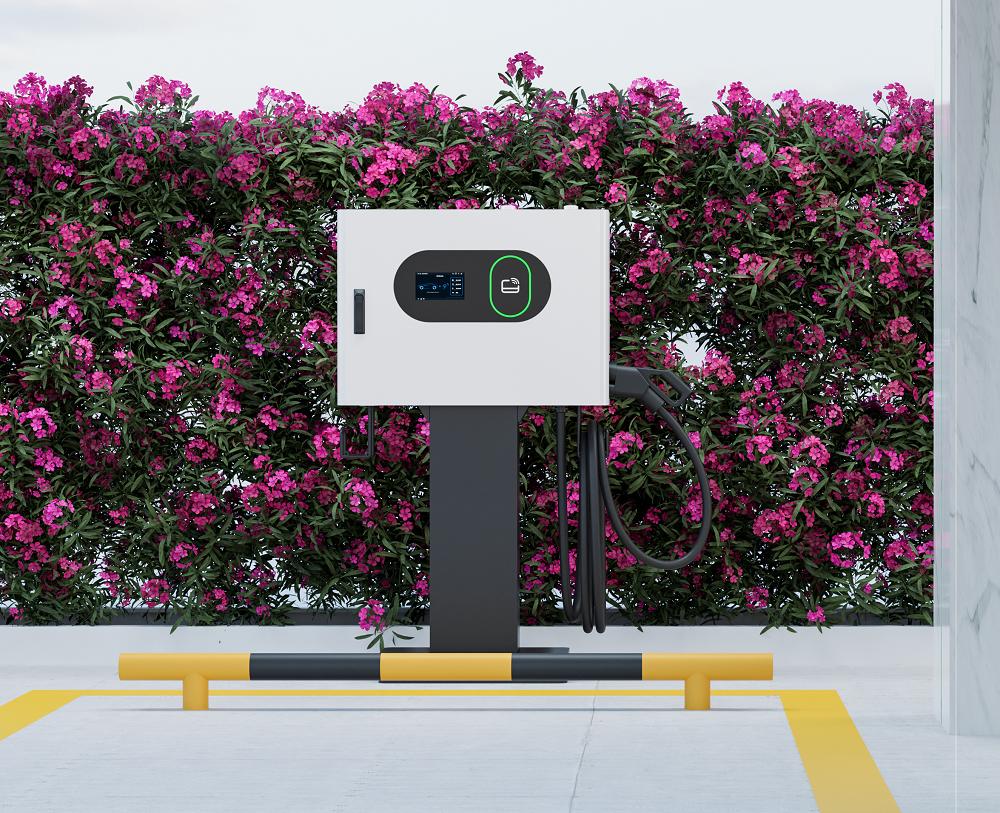

EVD002 30KW DCFC Charger Smart and Efficient Charging Station for EV Fleets

Short Description:

Joint EVD002 30KW NA EV Charger provides a constant output power of 30KW for faster charging efficiency and is the perfect solution for efficient and reliable electric vehicle charging.

With the ability to manage the charger via OCPP 1.6 functionality, the EVD002 enhances operational efficiency. The DC power module is designed with epoxy resin automatic injection, providing robust protection against dust and salty air, and improving environmental adaptability. Its NEMA 3S protection, IK10 vandal-proof enclosure, and IK8 touch screen ensure durability and safety in various settings. Plus, the 7″ coloured touch LCD supports multiple languages, making it user-friendly for diverse applications.

AC Connection: 3-Phase, L1, L2, L3, N, PE

Input Voltage Range : 400V±10%

Maximum Power : 20kW/30kW/40kW

Charging Outlet : 1*CCS2 cable

Send email to us Download as PDF

Product Detail

Product Tags

EVD002 DC Charger - Specification Sheet
MODEL NO.		EVD002/20E	EVD002/30E	EVD002/40E
AC INPUT	AC Connection	3-Phase, L1, L2, L3, N, PE
	Input Voltage Range	400Vac±10%
	Input Frequency	50 Hz or 60 Hz
	AC Input Power	32 A, 22 kVA	48 A, 33 kVA	64A, 44 kVA
	Power Factor (Full Load)	≥ 0.99
DC OUTPUT	Maximum Power	20 kW	30 kW	40 kW
	Charging Outlet	1*CCS2 cable
	Cable Maximum Current	80A	100A
	Cooling method	Air-cool
	Cable Length	4.5M
	DC Output Voltage	200-1000 Vdc
	Protection	Overcurrent, overvoltage, undervoltage, integrated surge protection, grounding protection, overtemp protection
	Power Factor (Full Load)	≥ 0.98
	Efficiency (peak)	≥ 95%
USER INTERFACE	User Interface	7" LCD high-contrast touchscreen
	Language System	English (Other languages available upon request)
	Authentification	Plug&Play / RFID / QR code
	Emergency Button	Yes
	Internet Connectivity	Ethernet, 4G, Wi-Fi
LIGHT CODES	Standby	Solid Green
	Charging	Green Blinking
	Finished Charging	Solid Green
	Fault	Solid Red
	Device Unavailable	Yellow Blinking
	OTA	Yellow Breathing
	Fault	Solid Red
ENVIRONMENTA	Operating Temperature	-25 °C to + 50°C
	Storage Temperature	-40 °C to +70 °C
	Humidity	< 95%, non-condensing
	Operating Altitude	Up to 2000 m
Safety		IEC 61851-1, IEC 61851-23
EMC		IEC 61851-21-2
Protocol	EV Communication	IEC 61851-24
	Backend support	OCPP 1.6 (Can be upgraded to OCPP 2.0.1 later)
	DC connetor	IEC 62196-3
	RFID Authentication	ISO 14443 A/B
