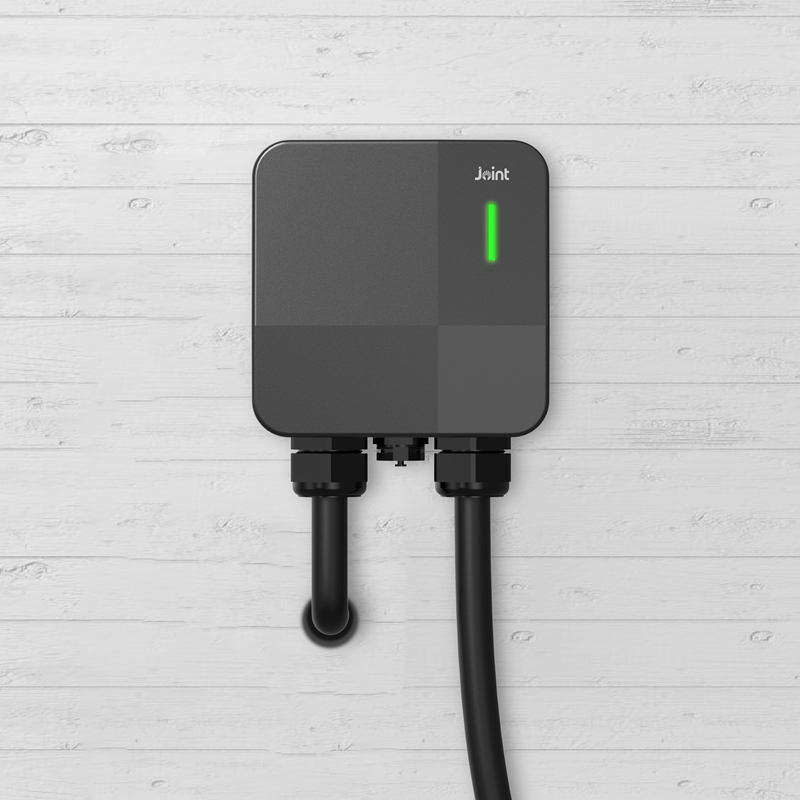

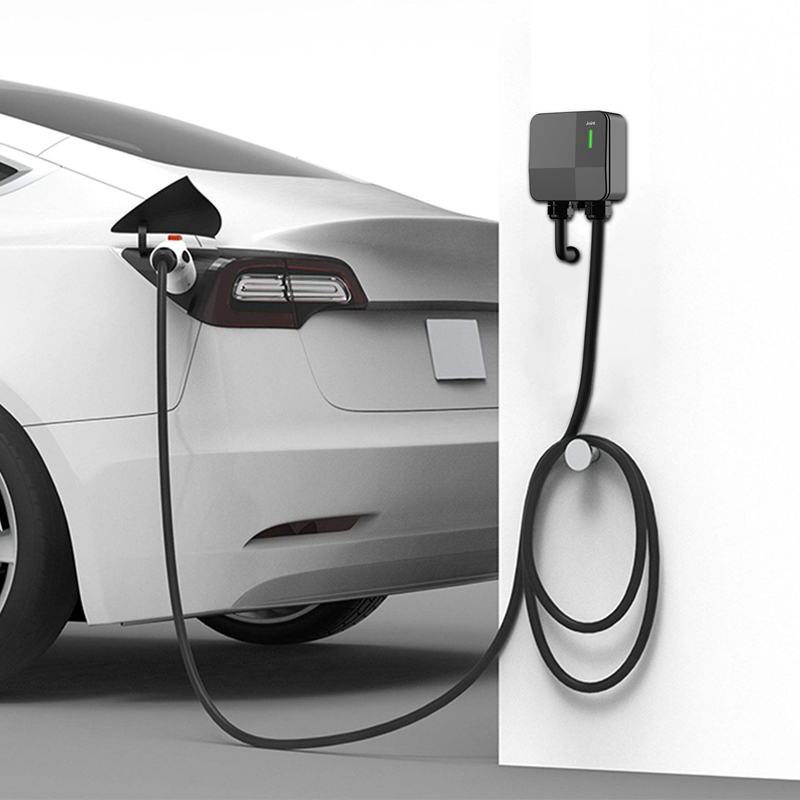

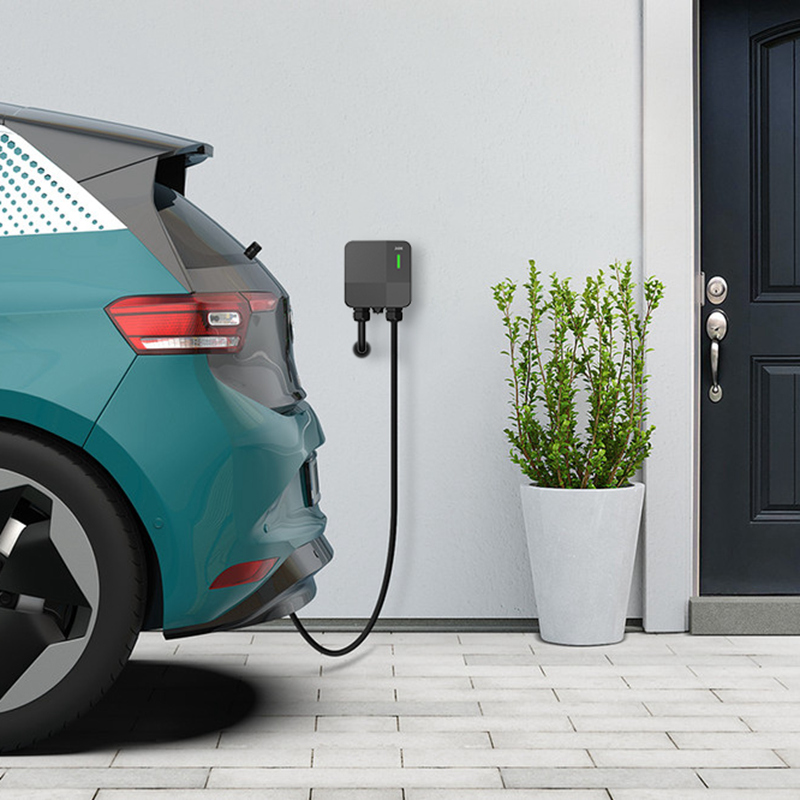

JNT-EVC27-NA compact design powerful 48A output home ev charger

Short Description:

Home charging gives electric vehicle drivers peace of mind every day. Over half of EV drivers prefer to charge at home, and as more people convert to driving electric reliable home charging solutions are necessary. Joint Charging offers fast and reliable home charging solutions and we pride ourselves in having forward-thinking solutions ready to install today.

Send email to us Download as PDF

Product Detail

Product Tags

JNT-EVC27-NA

Home charging gives EV drivers peace of mind every day.

- Secure -

Build in PEN fault protection,
no earthing rod required.

- Intelligent -

Protect the property's fuse
and reduce cost for power upgrades.

Powerful

Up to 48A / 11.5 kW of fast-charging power.

Compatible

SEA J1772 compliant, type 1 plug with 18-foot cables.

Connected

Control via Bluetooth and WiFi with the home app

Technical Datasheet

General Specifications

Model	JNT-EVC27-NA
Charging Mode	Level 2
Cable Length	18-foot (25-foot optional)
Dimensions	8.6″ x 8.6″ x 3.7″
Certificate	ETL , FCC
Waranty	2 Year

Electrical Specifications

Input Voltage	208-240Vac
Frequency	50-60Hz
Amperage	16A	32A	40A	48A
Power Output	3.8kW	7.6kW	9.6kW	11.5kW
RCD	Type A + DC 6mA
Connectivity	Wi-Fi & Bluetooth + APP control
OCPP	OCPP 1.6J optional
Optional Features	Dynamic Power Sharing / MID Meter

Protection & Standard

Charging Interface	SAE J1772 Compliant, Type 1 Plug
Safety Compliance	UL2594, UL2231-1/-2
Multiple Protection	UVP, OVP, RCD (CCID 20), SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection
