Level 2 EV Charger Unit with Type 1 Outlet 16A 3.5kw
Level 2 EV Charger Unit with Type 1 Outlet 16A 3.5kw
Introduction
The EVC12 is the Vvery affordable way to charge your EV from the comfort of your own home. Whether you set it up in your garage or by your driveway, the 5m cable is long enough to reach your EV every time.
Product Specification
| JNT - EVC12 | |||
| Regional Standard | |||
| Regional Standard | NA Standard | EU Standard | |
| Power Specification | |||
| Voltage | 208–240Vac | 230Vac±10% (Single phase) | 400Vac±10% (Three phase) |
| Power / Amperage | 3.5kW / 16A | - | 11kW / 16A |
| 10kW / 40A | - | - | |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Function | |||
| Network | Wi-Fi & Bluetooth | ||

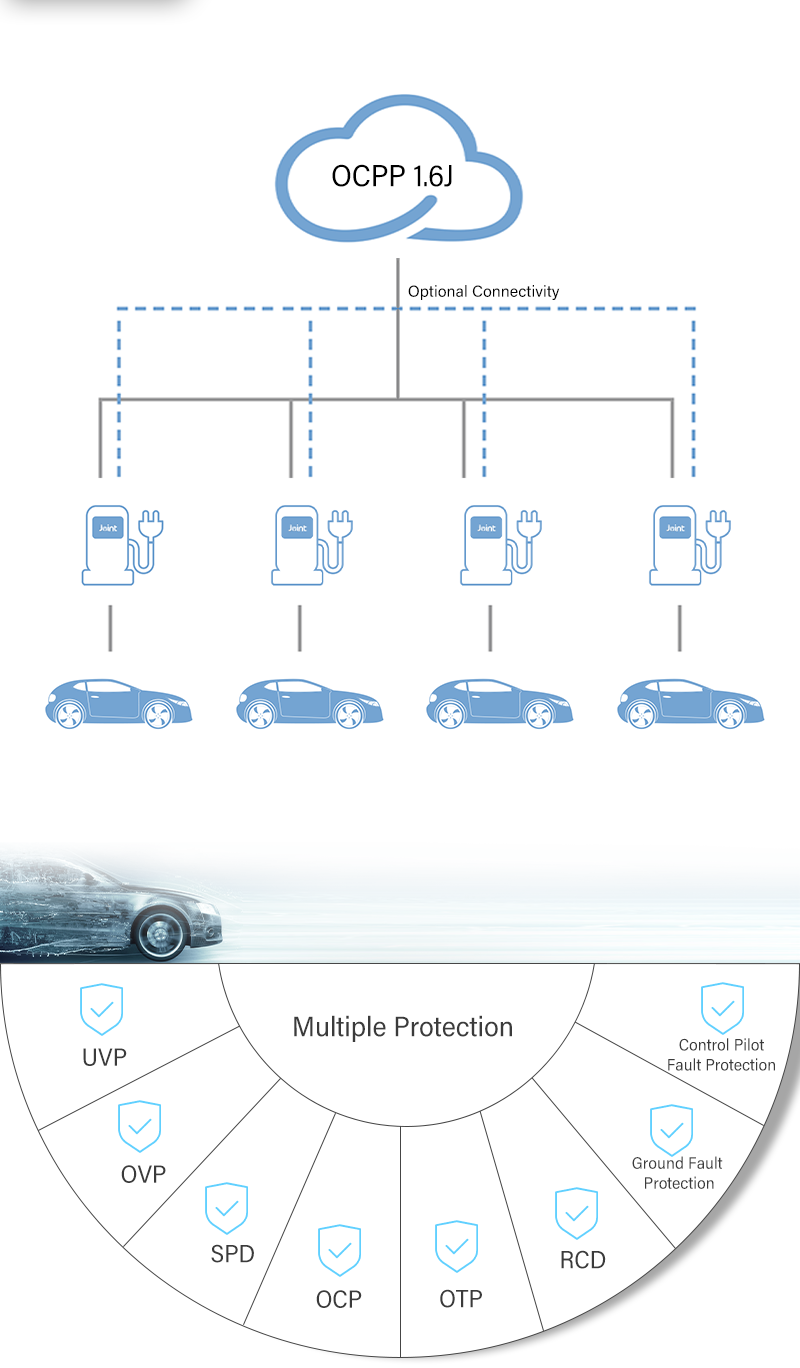

| Connectivity | Optional OCPP 1.6 J | ||
| Protection & Standard | |||
| Certificate | ETL & FCC | CE (TUV) | |

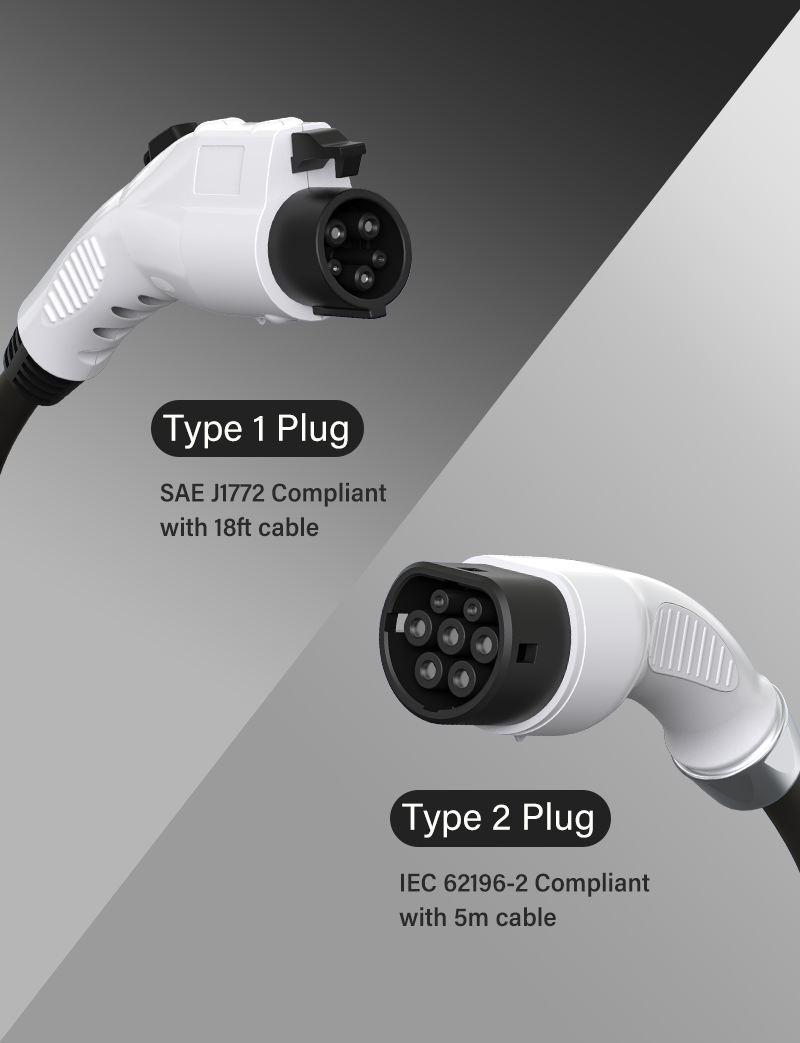

| Charging Interface | SAE J1772 , Type 1 Plug | IEC 62196-2 , Type 2 Socket or Plug | |
| Safety Compliance | UL2594 , UL2231-1/-2 | IEC 61851-1 , IEC 61851-21-2 | |
| RCD | CCID 20 | TypeA + DC 6mA | |
| Multiple Protection | UVP , OVP , RCD , SPD , Ground Fault Protection , OCP , OTP , Control Pilot Fault Protection | ||
| Environmental | |||
| Operating Temperature | -22°F to 122°F | -30°C ~ 50°C | |
| Indoor / Outdoor | IK08, Type 3 enclosure | IK08 & IP54 | |
| Relative Humidit | Up to 95% non-condensing | ||
| Cable Length | 18ft (5m) Standard , 25ft (7m) Optional with Surcharge | ||
Product Details
