NA commercial OCPP 1.6J wall-mounted AC EV charger with 4.3″ screen

NA commercial OCPP 1.6J wall-mounted AC EV charger with 4.3″ screen Featured Image
  • NA commercial OCPP 1.6J wall-mounted AC EV charger with 4.3″ screen
  • NA commercial OCPP 1.6J wall-mounted AC EV charger with 4.3″ screen
  • NA commercial OCPP 1.6J wall-mounted AC EV charger with 4.3″ screen
  • NA commercial OCPP 1.6J wall-mounted AC EV charger with 4.3″ screen
  • NA commercial OCPP 1.6J wall-mounted AC EV charger with 4.3″ screen
  • NA commercial OCPP 1.6J wall-mounted AC EV charger with 4.3″ screen

NA commercial OCPP 1.6J wall-mounted AC EV charger with 4.3″ screen

Short Description:

As more drivers go electric, smart EV chargers are becoming a must-have amenity for workplaces, businesses, apartments and condos. Joint's OCPP performance allow your fully-networked, grid-responsive charging stations to maximize your EV infrastructure investment and provide access to best-in-class EV charging to your customers, guests, and employees.


  • Sample: Support
  • Customization: Support
  • Certification: ETL, FCC
  • Input Voltage: 200-240V
  • Output Rating: 16A/3.8KW , 32A/7.7KW , 40A/9.6KW , 48A/11.5KW
  • Charging Interface: SAE J1772 , Type1 Plug
  • Internal Communication: OCPP 1.6 JSON (OCPP 2.0 compatible)
  • External Communication: LAN (optional) + 4G (optional) or Wi-Fi (optional)
  • Charging Control: Plug & Play / RFID (ISO14443)
  • Cable Length: 18ft (25ft charging cable optional)
  • LCD Display: 4.3'' screen
    • Download as PDF

    Product Detail

    Product Tags

    Introduction

    To prepare any location, from public to private, from hotels to workplaces or multi-family residences, Joint Tech offers solutions that are fast, reliable, and ready for the future. We pride ourselves in having the most forward-thinking EV charging solutions ready to install with flexible configurations and business models.

    Product Specification

    JNT - EVC10
    Regional Standard
    Regional Standard NA Standard EU Standard
    Power Specification
    Voltage 208–240Vac 230Vac±10% (Single phase) 400Vac±10% (Three phase)
    Power / Amperage    3.5kW / 16A - 11kW / 16A
    7kW / 32A 7kW / 32A 22kW / 32A
    10kW / 40A - -
    11.5kW / 48A - -
    Frequency 50-60Hz 50-60Hz 50-60Hz
    Function

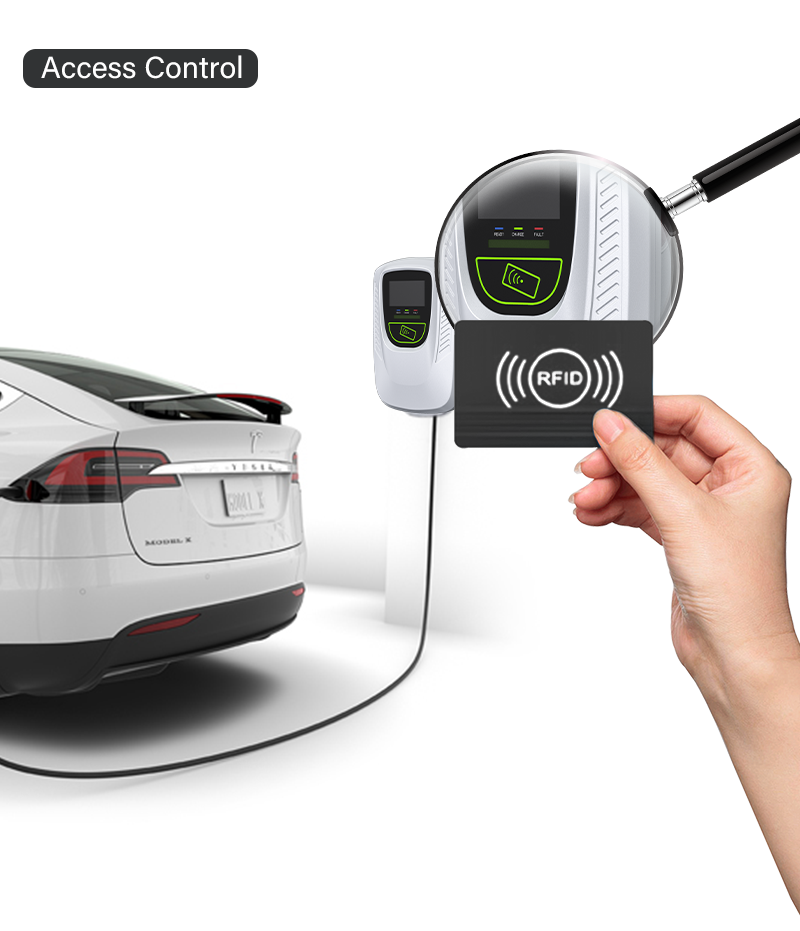

    User Authentication RFID (ISO 14443)

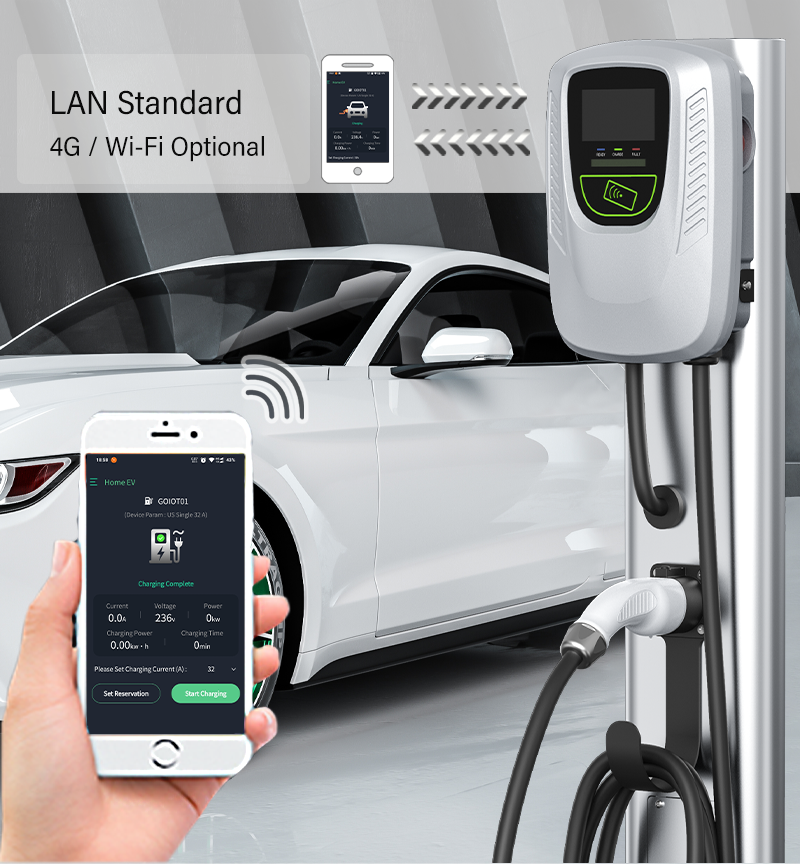

    Network LAN Standard (4G or Wi-Fi Optional with Surcharge)
    Connectivity OCPP 1.6 J
    Protection & Standard

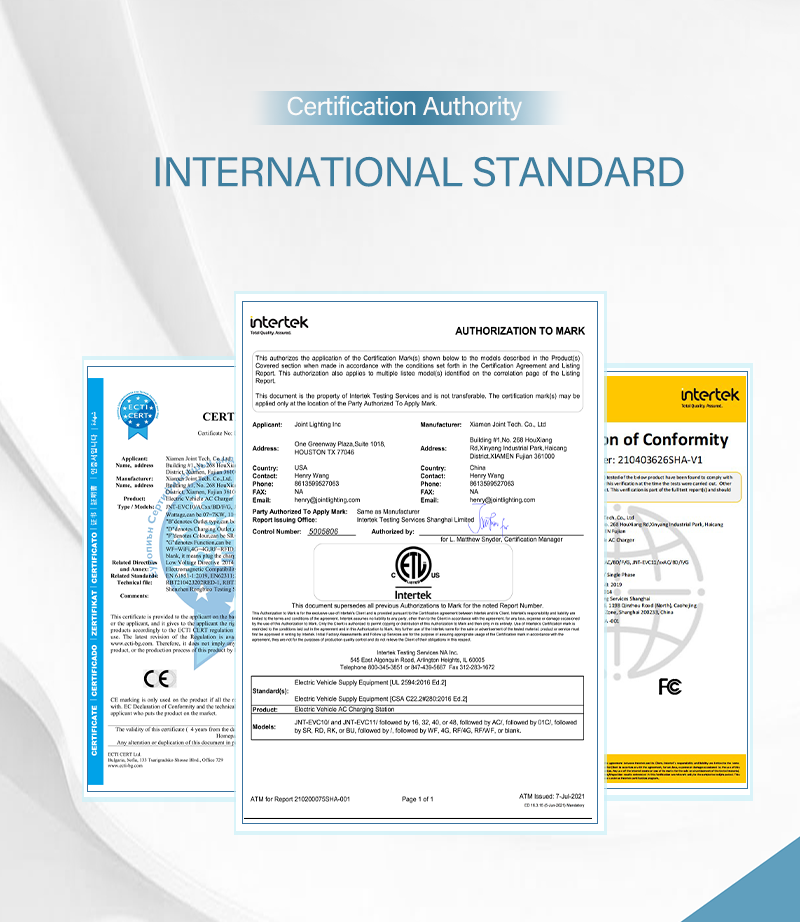

    Certificate ETL & FCC CE (TUV)

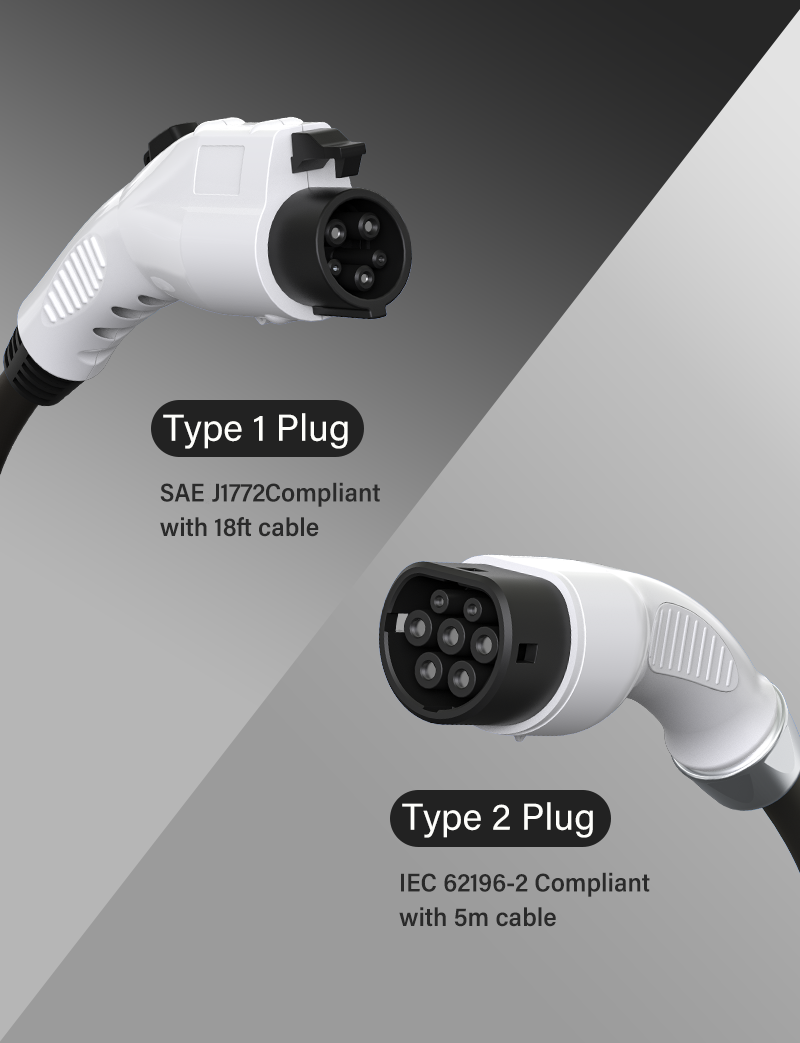

    Charging Interface SAE J1772 , Type 1 Plug IEC 62196-2 , Type 2 Socket or Plug
    Safety Compliance UL2594 , UL2231-1/-2 IEC 61851-1 , IEC 61851-21-2
    RCD CCID 20 TypeA + DC 6mA

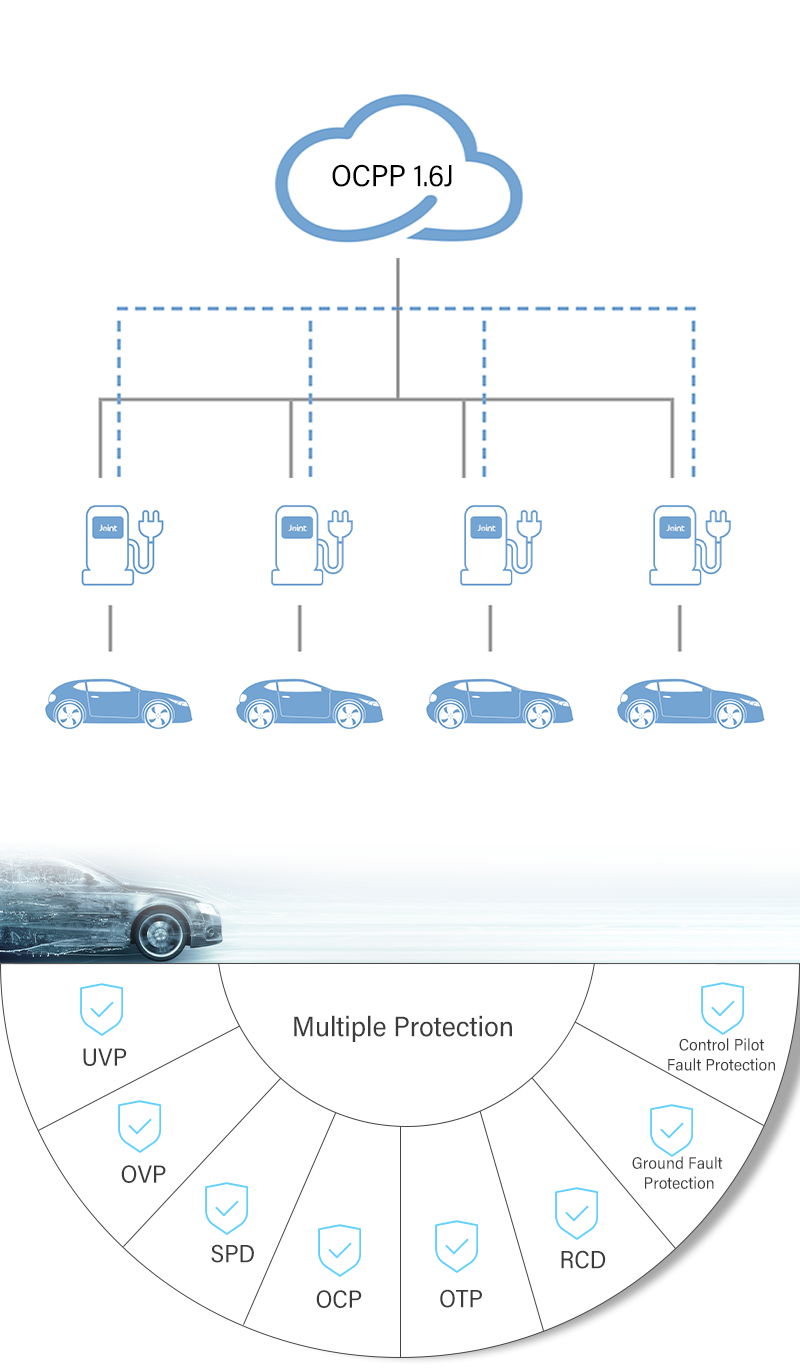

    Multiple Protection UVP , OVP , RCD , SPD , Ground Fault Protection , OCP , OTP , Control Pilot Fault Protection
    Environmental
    Operating Temperature -22°F to 122°F -30°C ~ 50°C

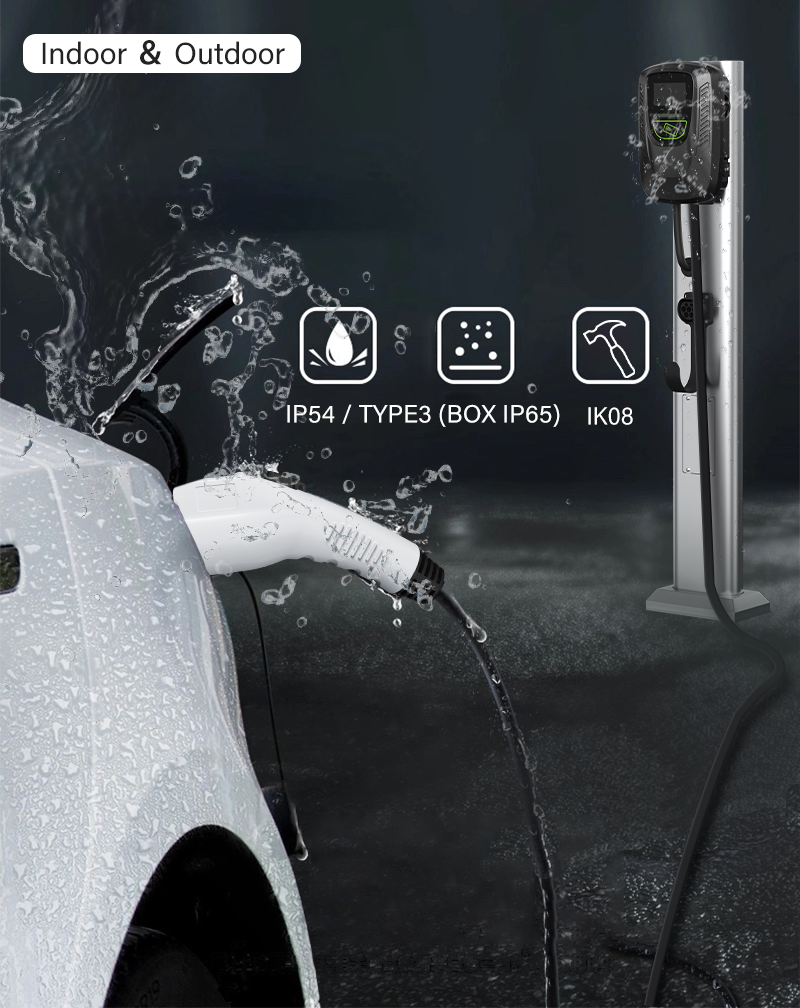

    Indoor / Outdoor IK08, Type 3 enclosure IK08 & IP54
    Relative Humidit Up to 95% non-condensing
    Cable Length 18ft (5m) Standard , 25ft (7m) Optional with Surcharge

    Product Details

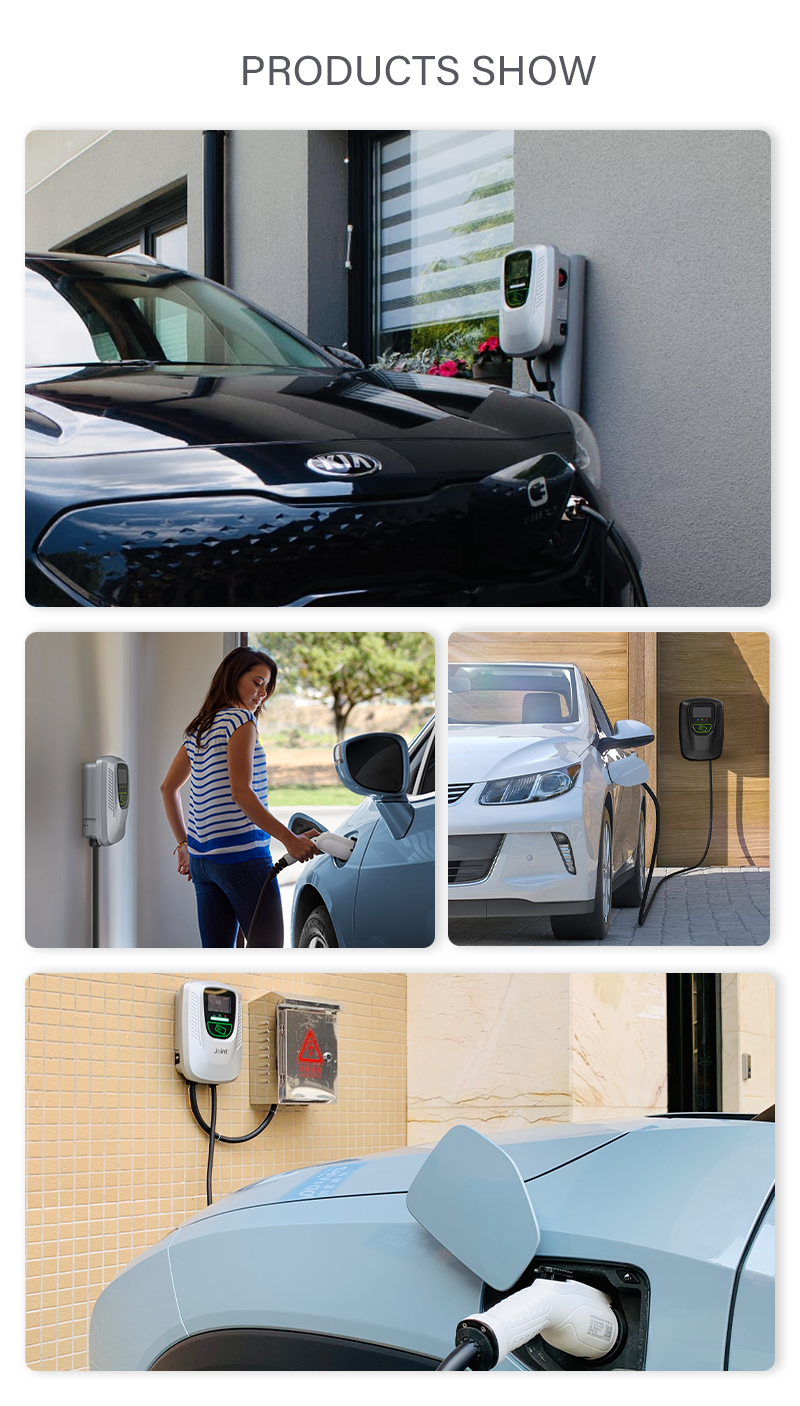

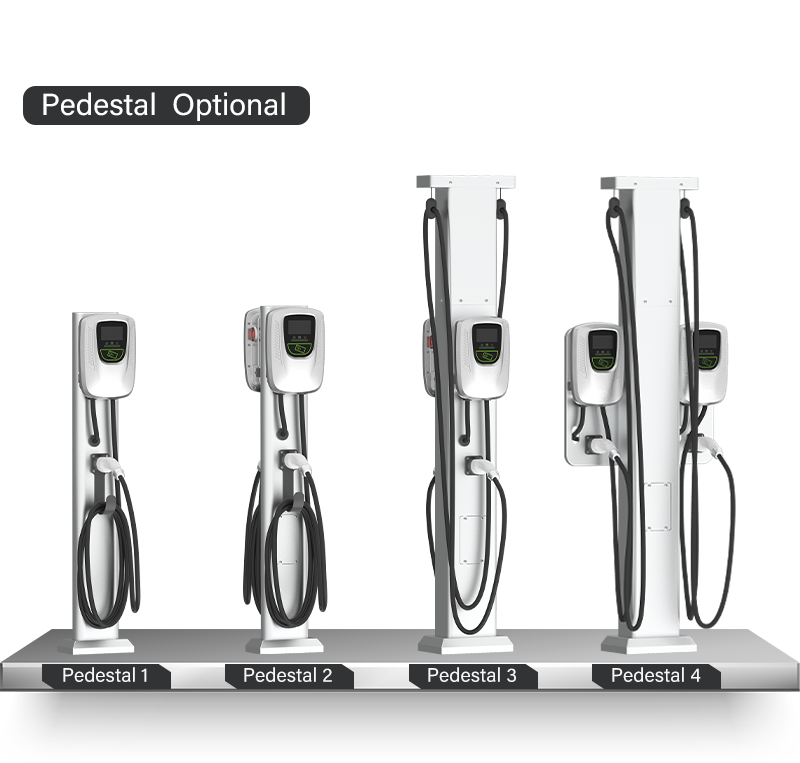

    AC EV chargercharging station (2) charging station (3) charging station (4) charging station (5) charging station (6) charging station (7) charging station (8) charging station (9)
