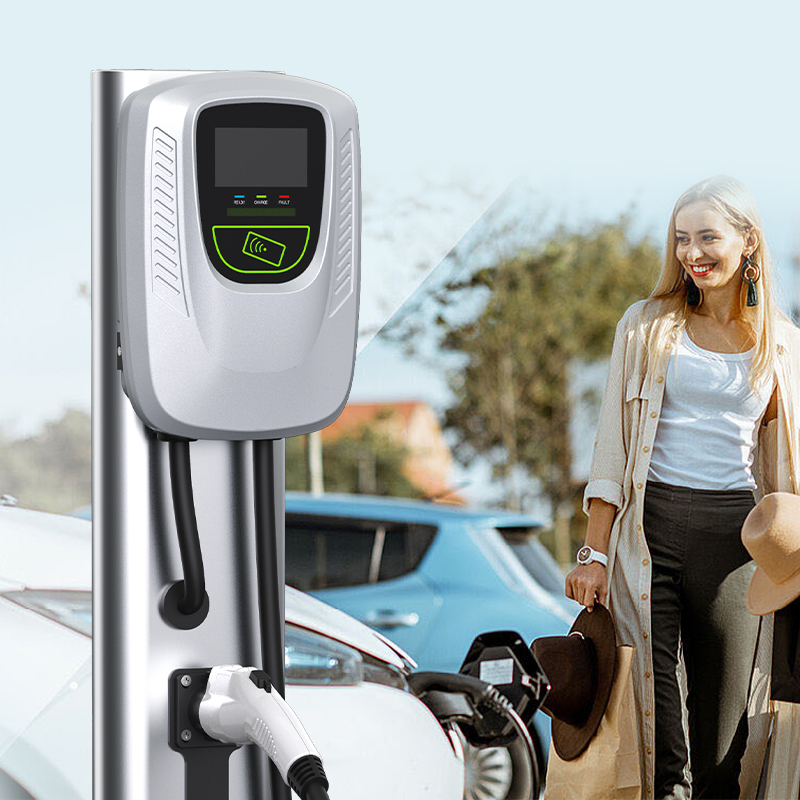

Wallbox Type 2 16A 7kw One Phase EV Charging Point EV Charger for Electric Vehicle Smart Charging

Wallbox Type 2 16A 7kw One Phase EV Charging Point EV Charger for Electric Vehicle Smart Charging

Short Description:

Monophase 32 amp with output 7kW mode 3 electric vehicle charging station is perfect for any location. The Type 2 (IEC 62196) socketed and cable unit is compatible with all vehicles. With an IP65 waterproof/dust rating you can rest easy leaving car charging overnight even in the rain. The units are made from a hard wearing polycarbonate from Japan. It comes with a built in 30 Amp and DC6mA to give overload and fault current protection.


  • Output Power: 7kW, 11kW, 22kW
  • Communication Protocol: OCPP 1.6J (2.0 compatible)
  • Input Current: 16A, 32A
  • Input Voltage: 230±10% (1 phase), 400±10% (3 phase),
  • RCD: Type A+DC6mA
  • IP, IK : IP65, IK08
  • External Communication: LAN+4G (Optional)+WIFI (Optional)
  • Display: 4.3" LCD Screen (Touch Screen optional)
  • Cable Dimension: 350x250x175mm
  • Socket Dimension: 350x250x130mm
  • Product Detail

    Product Tags

    We emphasize advancement and introduce new products into the market each year for factory Outlets for China Ocpp Type 2 Fast EV Charging Station with Ce CB SGS, Our merchandise are widely recognized and trustworthy by users and can satisfy continuously changing economic and social needs.
    factory Outlets for China EV Charging Station Manufacturer, Wall Box Type2 Type1 EV Charging Station, To keep the leading position in our industry, we never stop challenging the limitation in all aspects to create the ideal products. In his way, We can enrich our life style and promote a better living environment for the global community.

    Type 2 16A 11kw EV Charger for Electric Vehicle Charging

    JNT-EVC10 Series

    Model Name EVC10-07C1S EVC10-07C1C EVC10-22C1S EVC10-22C1C
    Input Voltage

    230±10% (1 phase)

    400±10% (3 phase)

    Frequency

    50Hz

    Input Current 32A
    Output Current  32A
    User Authentication

    RFID (ISO 14443)

    External

    LAN (optional) + 4G (optional) or Wi-Fi (optional)

    Internal

    OCPP 1.6 JSON (OCPP 2.0 compatible)

    Operating Temperature

    -22˚F~122˚F(-30˚C~50˚C)

    Humidity

    Max. 95% RH

    Altitude

    ≦ 2000m

    IP Level

    IP65 for box

    Cooling Method

    Natural Cooling

    Dimension(WxDxH)

    350x250x175mm

    350x250x130mm

    350x250x175mm

    350x250x130mm

    Charging Outlet

    One Charging socket

    5m charging cable One Charging socket 5m charging cable
    CCID

    Type A + DC6mA

    Multiple Protection

    Over current, Under voltage, Over voltage, Residual current, Surge protection,
    Short circuit, Over temperature, Ground fault, Current leakage protection

    Certificate

    IEC 61851-1, IEC61851-21-2

    Safety

    CE

    Wireless Certificate

    RED

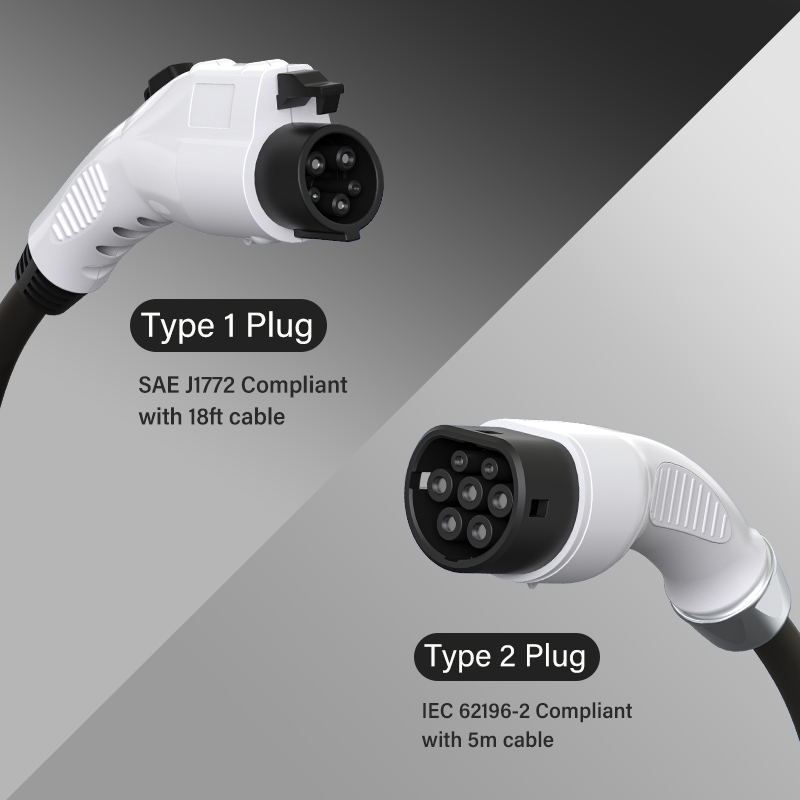

    Charging Interface

    IEC 62196-2, Type 2 Plug

     Feature:

    The most compact design on the market with the highest performance, intelligent charging system for plug-in vehicles, designed for semi public and business charging locations. Easy to install, easy to use and easy to enjoy.

    It is a new and improved second generation design, incorporating internal leakage protection. Which make installation easier and more economical. The charger connects with management platform, which makes it smart and enables multiple user access with a simple RFID card or Wallbox mobile app.

    Personalised support service: Dimensions 350x250x175mm. 4.3″ untouchscreen with custom interface and adjustable charging power from the display. Can set up up to four different recharging schedules to coincide with lower energy costs.

    Type 2 16A 11kw EV Charger for Electric Vehicle Charging1
